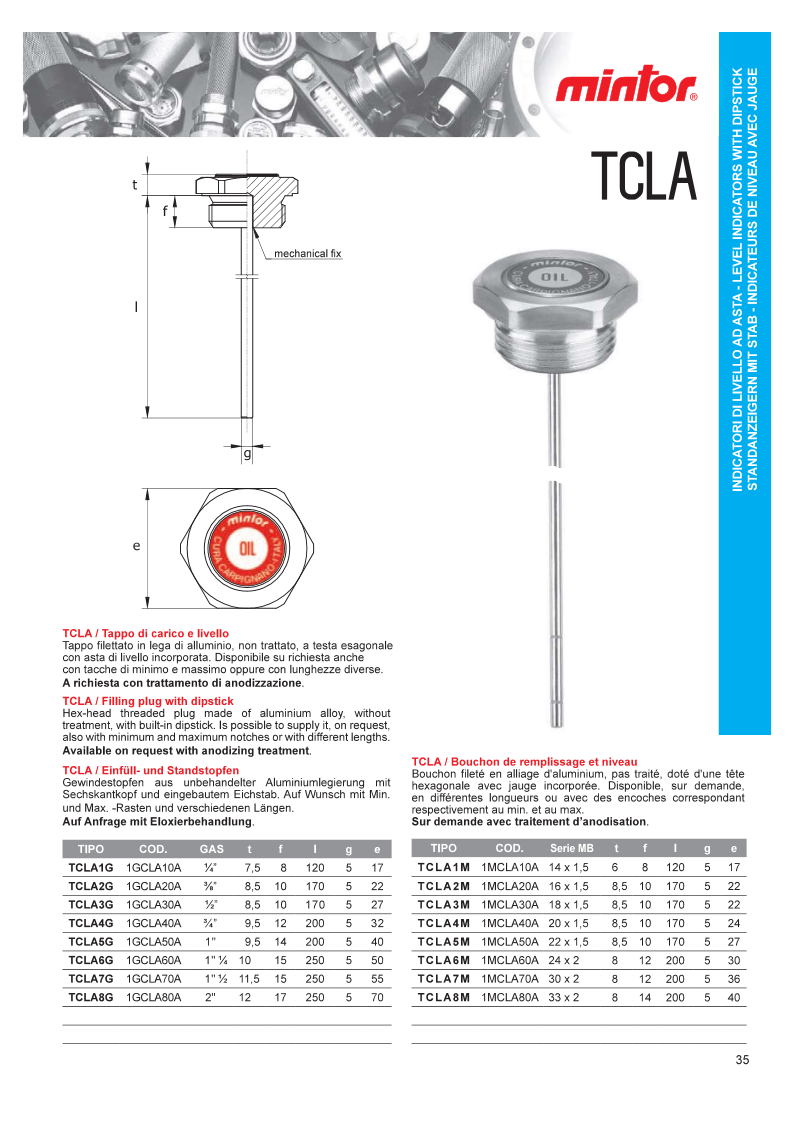

Gösterge çubuklu doldurma tapası
Gösterge çubuklu doldurma tapası
Stok Kodu: TCLA
Kategori: SEVİYE GÖSTERGELERİ
TYPE | CODE | THREAD | t | f | l | g | e | WEIGHT (g) |
TCLA1G | 1GCLA10A | 1/4" | 7.5 | 8 | 120 | 5 | 17 | 25 |
TCLA2G | 1GCLA20A | 3/8" | 8.5 | 10 | 170 | 5 | 22 | 38 |
TCLA3G | 1GCLA30A | 1/2" | 8.5 | 10 | 170 | 5 | 27 | 47 |
TCLA4G | 1GCLA40A | 3/4" | 9.5 | 12 | 200 | 5 | 32 | 67 |
TCLA5G | 1GCLA50A | 1" | 9.5 | 14 | 200 | 5 | 40 | 94 |
TCLA6G | 1GCLA60A | 1" 1/4 | 10 | 15 | 250 | 5 | 50 | 156 |
TCLA7G | 1GCLA70A | 1" 1/2 | 11.5 | 15 | 250 | 5 | 55 | 183 |
TCLA8G | 1GCLA80A | 2" | 12 | 17 | 250 | 5 | 70 | 286 |
TYPE | CODE | THREAD | t | f | l | g | e | WEIGHT (g) |
TCLA1M | 1MCLA10A | 14 x 1.5 | 6 | 8 | 120 | 5 | 17 | 24 |
TCLA2M | 1MCLA20A | 16 x 1.5 | 8.5 | 10 | 170 | 5 | 22 | 39 |
TCLA3M | 1MCLA30A | 18 x 1.5 | 8.5 | 10 | 170 | 5 | 22 | 41 |
TCLA4M | 1MCLA40A | 20 x 1.5 | 8.5 | 10 | 170 | 5 | 24 | 43 |
TCLA5M | 1MCLA50A | 22 x 1.5 | 8.5 | 10 | 170 | 5 | 27 | 48 |
TCLA6M | 1MCLA60A | 24 x 2 | 8 | 12 | 200 | 5 | 30 | 61 |
TCLA7M | 1MCLA70A | 30 x 2 | 8 | 12 | 200 | 5 | 36 | 78 |
TCLA8M | 1MCLA80A | 33 x 2 | 8 | 14 | 200 | 5 | 40 |
