TCF-Z Serisi Havalandırma Tapaları

Filling plug with breather Threaded plug in aluminium alloy without treatment, with knurled round head for hand-tightening. Hole for venting internal pressure diameter from 2 mm to 3,5 mm free vented. For application only on upper part of the crankcase away from moving parts. For applications requiring extra-tight sealing, type TSFT/N is recommended.

HAVALANDIRMA TAPALARI-TCF-Z Serisi Havalandırma Tapaları

Filling plug with breather Threaded plug in aluminium alloy without treatment, with knurled round head for hand-tightening. Hole for venting internal pressure diameter from 2 mm to 3,5 mm free vented. For application only on upper part of the crankcase away from moving parts. For applications requiring extra-tight sealing, type TSFT/N is recommended.

TCF-Z Serisi Havalandırma Tapaları

Filling plug with breather Threaded plug in aluminium alloy without treatment, with knurled round head for hand-tightening. Hole for venting internal pressure diameter from 2 mm to 3,5 mm free vented. For application only on upper part of the crankcase away from moving parts. For applications requiring extra-tight sealing, type TSFT/N is recommended.

TCF-Z Serisi Havalandırma Tapaları

Filling plug with breather Threaded plug in aluminium alloy without treatment, with knurled round head for hand-tightening. Hole for venting internal pressure diameter from 2 mm to 3,5 mm free vented. For application only on upper part of the crankcase away from moving parts. For applications requiring extra-tight sealing, type TSFT/N is recommended.

Stok Kodu: TCF-Z

Kategori: HAVALANDIRMA TAPALARI

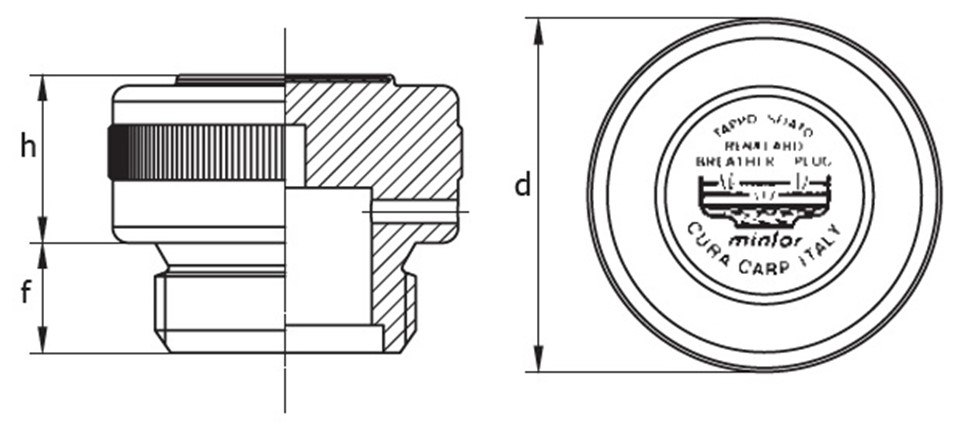

TYPE                  CODE                   THREAD           h            f         d             WEIGHT (g)
TCF/Z0G 1GCFZ00A G 1/8" 13.5 8 20 11
TCF/Z1G 1GCFZ10A G 1/4" 12 8 22 13
TCF/Z2G 1GCFZ20A G 3/8" 13.5 10 26 18
TCF/Z3G 1GCFZ30A G 1/2" 16.5 10 30 33
TCF/Z4G 1GCFZ40A G 3/4" 21.5 12 40 72
TCF/Z5G 1GCFZ50A G 1" 21.5 14 45 95
TCF/Z6G 1GCFZ60A G 1" 1/4 21.5 15 55 146
TCF/Z7G 1GCFZ70A G 1" 1/2 21.5 15 55 96
TCF/Z8G 1GCFZ80A G 2" 21.5 17 70 143





TYPE                CODE                    THREAD            h            f          d            WEIGHT (g)
TCF/Z0M 1MCFZ00A 10 x 1 12 8 20
TCF/Z1M 1MCFZ10A 14 x 1.5 12 8 22 13
TCF/Z2M 1MCFZ20A 16 x 1.5 12 10 26
TCF/Z3M 1MCFZ30A 18 x 1.5 12 10 26
TCF/Z4M 1MCFZ40A 20 x 1.5 15 10 30 31
TCF/Z5M 1MCFZ50A 22 x 1.5 15 10 30
TCF/Z6M 1MCFZ60A 24 x 2 16.5 12 36
TCF/Z7M 1MCFZ70A 30 x 2 20 12 42
TCF/Z8M 1MCFZ80A 33 x 2 21.5 14 45
TCF/Z KATALOG
