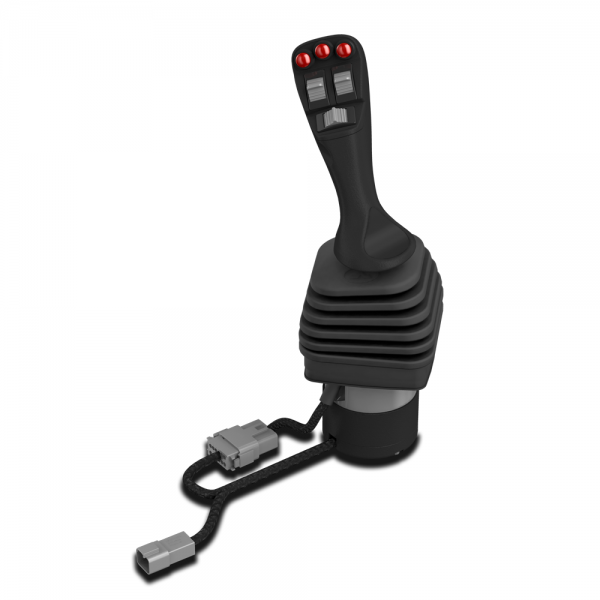

Joystick for ISOBUS and Safety related applications

The new Walvoil joystick is designed for safety related applications up to Performance  Level d / SIL 2 ad it is completely sealed and protected against water and dust ingress (IP67/IPx9K).

With the high number of input pins, the joystick can collect all the signals of the handle (thumbwheels, push buttons, roker switches, ...) and send them over the CANbus network with SAE J1939, CANopen, CANopen Safety or ISOBUS protocol.

Voltage supply: from 8 to 32 V
Mechanical life time [cycle]: 1.000.000
Output signal: CANbus
Lever angle: ±20°
Weather protection: IP67-IPx9K
Working temperature: from -40 to 85 °C (from -40 to 185 °F)
Storage temperature: from -40 to 85 °C (from -40 to 185 °F)
Minimum working temperature [°C]: -40
Maximum working temperature [°C]: 85
Minimum storage temperature [°C]: -40
Maximum storage temperature [°C]: 85
