OBLÒ Ø 148

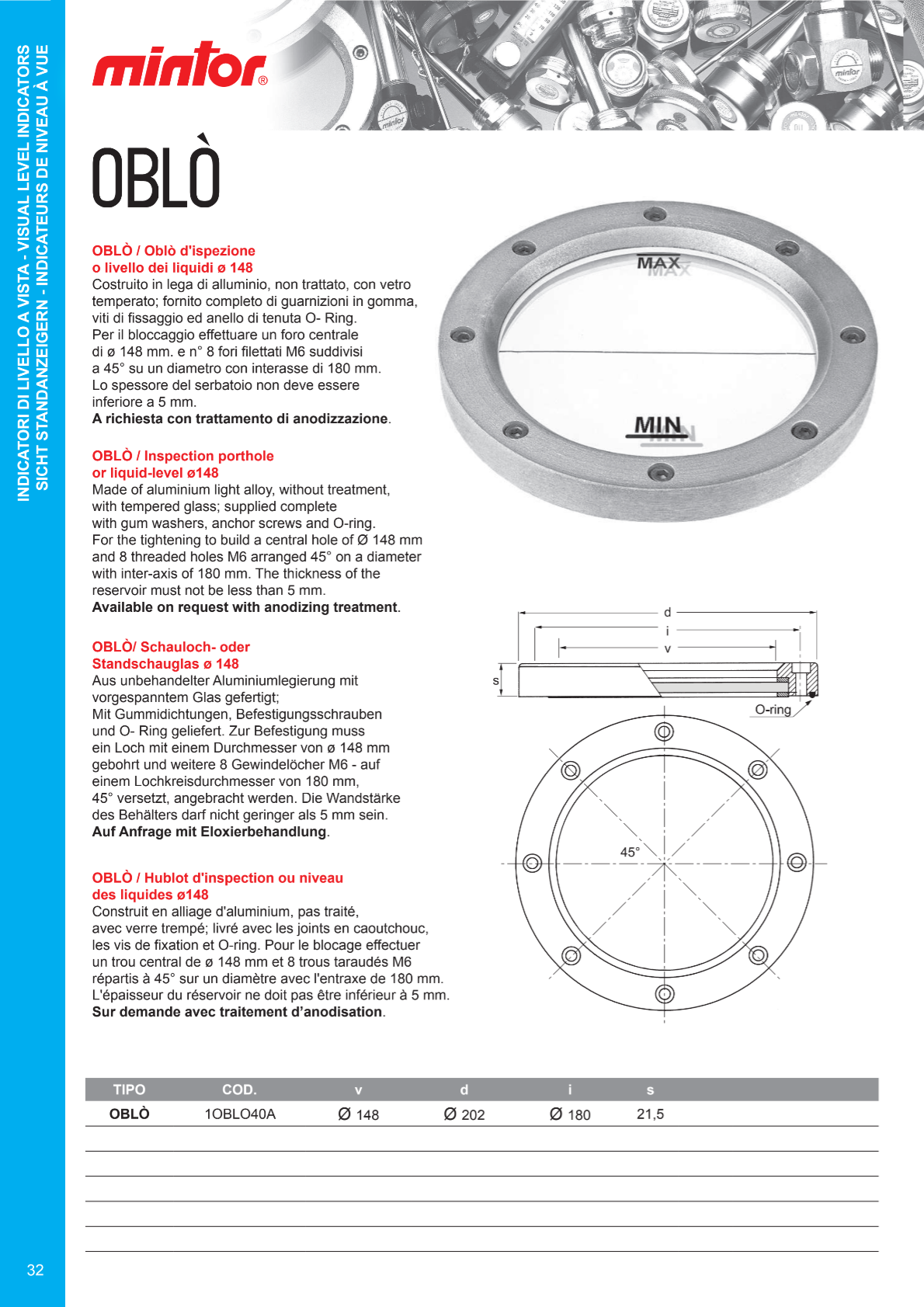

Inspection porthole or liquid-level ø148 Made of aluminium light alloy, without treatment, with tempered glass; supplied complete with gum washers, anchor screws and O-ring. For the tightening to build a central hole of Ø 148 mm and 8 threaded holes M6 arranged 45° on a diameter with inter-axis of 180 mm. The thickness of the reservoir must not be less than 5 mm. Max pressure 3 bar. Working temperature -20°C / +100°C Available on request with anodizing treatment.

LEVEL INDICATORS-OBLÒ Ø 148

Inspection porthole or liquid-level ø148 Made of aluminium light alloy, without treatment, with tempered glass; supplied complete with gum washers, anchor screws and O-ring. For the tightening to build a central hole of Ø 148 mm and 8 threaded holes M6 arranged 45° on a diameter with inter-axis of 180 mm. The thickness of the reservoir must not be less than 5 mm. Max pressure 3 bar. Working temperature -20°C / +100°C Available on request with anodizing treatment.

OBLÒ Ø 148

Inspection porthole or liquid-level ø148 Made of aluminium light alloy, without treatment, with tempered glass; supplied complete with gum washers, anchor screws and O-ring. For the tightening to build a central hole of Ø 148 mm and 8 threaded holes M6 arranged 45° on a diameter with inter-axis of 180 mm. The thickness of the reservoir must not be less than 5 mm. Max pressure 3 bar. Working temperature -20°C / +100°C Available on request with anodizing treatment.

OBLÒ Ø 148

Inspection porthole or liquid-level ø148 Made of aluminium light alloy, without treatment, with tempered glass; supplied complete with gum washers, anchor screws and O-ring. For the tightening to build a central hole of Ø 148 mm and 8 threaded holes M6 arranged 45° on a diameter with inter-axis of 180 mm. The thickness of the reservoir must not be less than 5 mm. Max pressure 3 bar. Working temperature -20°C / +100°C Available on request with anodizing treatment.

Stock Code: OBLÒ Ø 148

Category: LEVEL INDICATORS

OBLÒ Ø 148
